Designing a mirror touch sensor switch with specific functionalities such as an input of 220V AC, an output of 12V with a maximum load of 12 watts, and additional features like multi-color lighting and a dimmer function can be an exciting project. Below is a comprehensive guide to conceptualizing and developing this innovative product.
Key Features
Input and Output Specifications

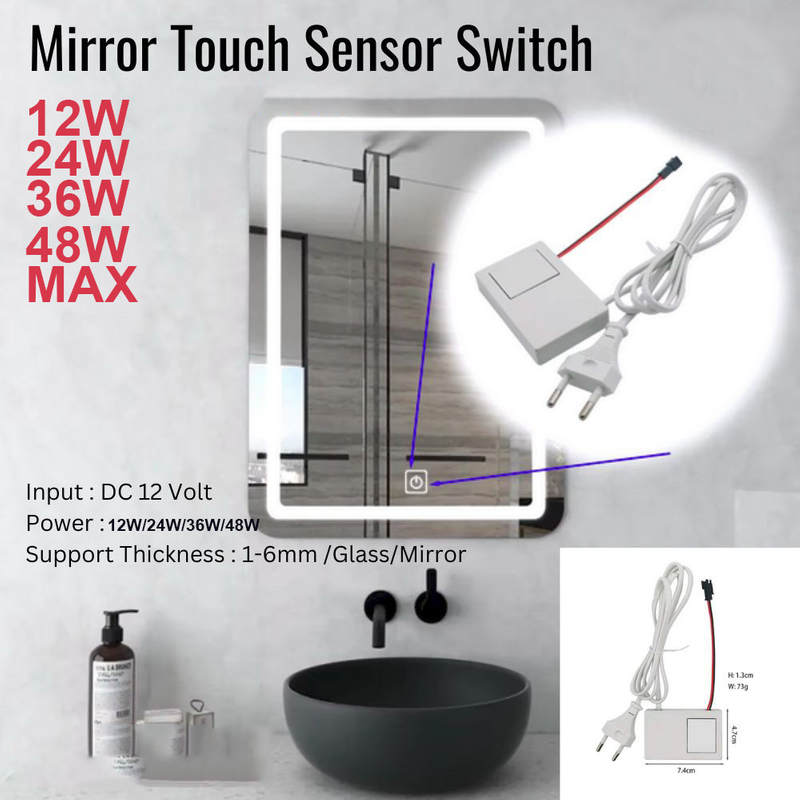

Input Voltage: 220V AC
Output Voltage: 12V DC
Maximum Load: 12W/24W/36W/48 watts
Functionalities
Touch Sensor: To enable the switch to be activated by a simple touch on the mirror surface.
Multi-Color Lighting: Ability to change colors, providing ambient lighting effects.
Dimmer Function: Adjust the brightness of the lights to desired levels.
Components Required
Power Supply Module: A module to convert 220V AC to 12V DC.
Touch Sensor Module: Capacitive touch sensor that can be fitted behind a mirror.
Microcontroller: To control the dimming and color-changing functionalities.
LED Strip: RGB LED strip for multi-color output.
Dimmer Circuit: To manage the brightness levels of the LED strip.
Resistors, Capacitors, and Connectors: For circuit stability and connections.
Design Considerations
Safety and Efficiency
Ensure the power supply module is efficient and includes short circuit protection.
Use high-quality components to prevent overheating and ensure long-lasting performance.
Touch Sensitivity
Opt for a touch sensor with adjustable sensitivity to accommodate different mirror thicknesses.
Test the sensor’s responsiveness to ensure it works accurately through the mirror.
Multi-Color and Dimming Control
Implement Pulse Width Modulation (PWM) for smooth dimming transitions.
Use an RGB LED controller to manage multiple colors and create dynamic lighting effects.
Pre-program the microcontroller with various lighting modes and dimming levels.
